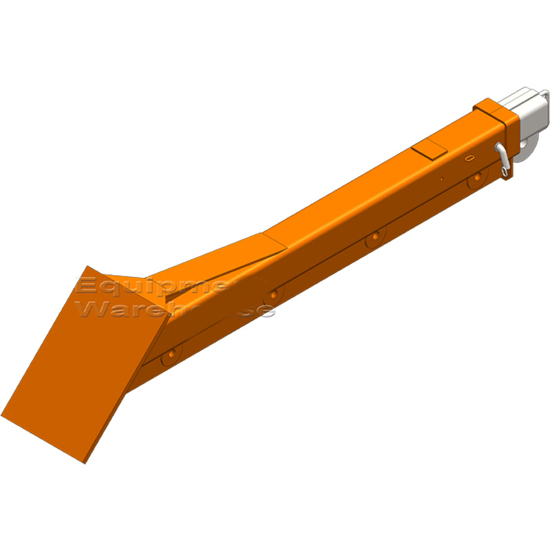

Excavator Jib Attachment Telescopic to 3.64m 5000kg


Part No: EW-EJ5000

Heavy duty telescopic Excavator Jib Boom designed to lift and transport most items on the job site by excavator without the need for an overhead crane. This versatile attachment expands the job capabilities of an excavator so that it can double as a crane when needed and allows even greater reach.
*
$2,760.00 excl GST

Excavator Jib Attachment telescopic to 3.64m 5000kg

Heavy duty telescopic Excavator Jib Boom designed to lift and transport most items on the job site by excavator without the need for an overhead crane. This versatile attachment expands the job capabilities of an excavator so that it can double as a crane when needed and allows even greater reach.
Features:
  • 3.64m reach when fully extended allowing for long reach lifts
  • 2.12m overall length when retracted
  • Supplied with safety swivel hook and shackle
  • Paint finish
NOTE: Head Bracket is not included but available on request to suit excavator. If you have a head bracket to suit your excavator, for a fee we can attach for you.
Specifications:
  • Working Load Limit (WLL) : 5000kg
  • Load Centre : 400mm
  • Unit Weight : 240kg
Lift Positions:
  • 400mm : 5000 Kg
  • 900mm : 2200 Kg
  • 1400mm : 1400 Kg
  • 1900mm : 1200 Kg
  • 2120mm : 1150 Kg
  • 2500mm : 1050 Kg
  • 2880mm : 905 Kg
  • 3260mm : 800 Kg
  • 3640mm : 720 Kg
